Vehicle Weighing Pad
Portable Ultra-thin Static Wireless Vehicle Weighing Pads
Product Overview

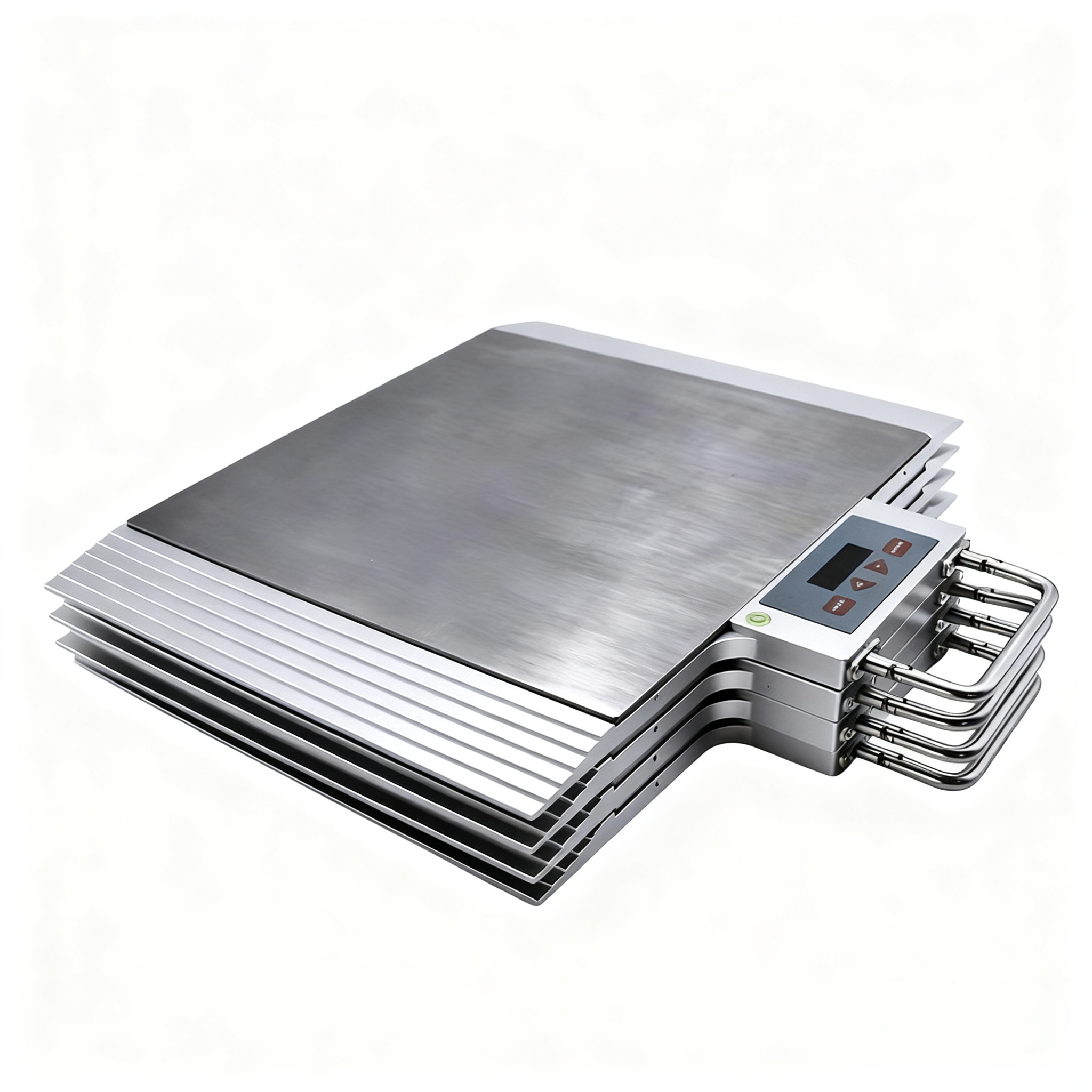

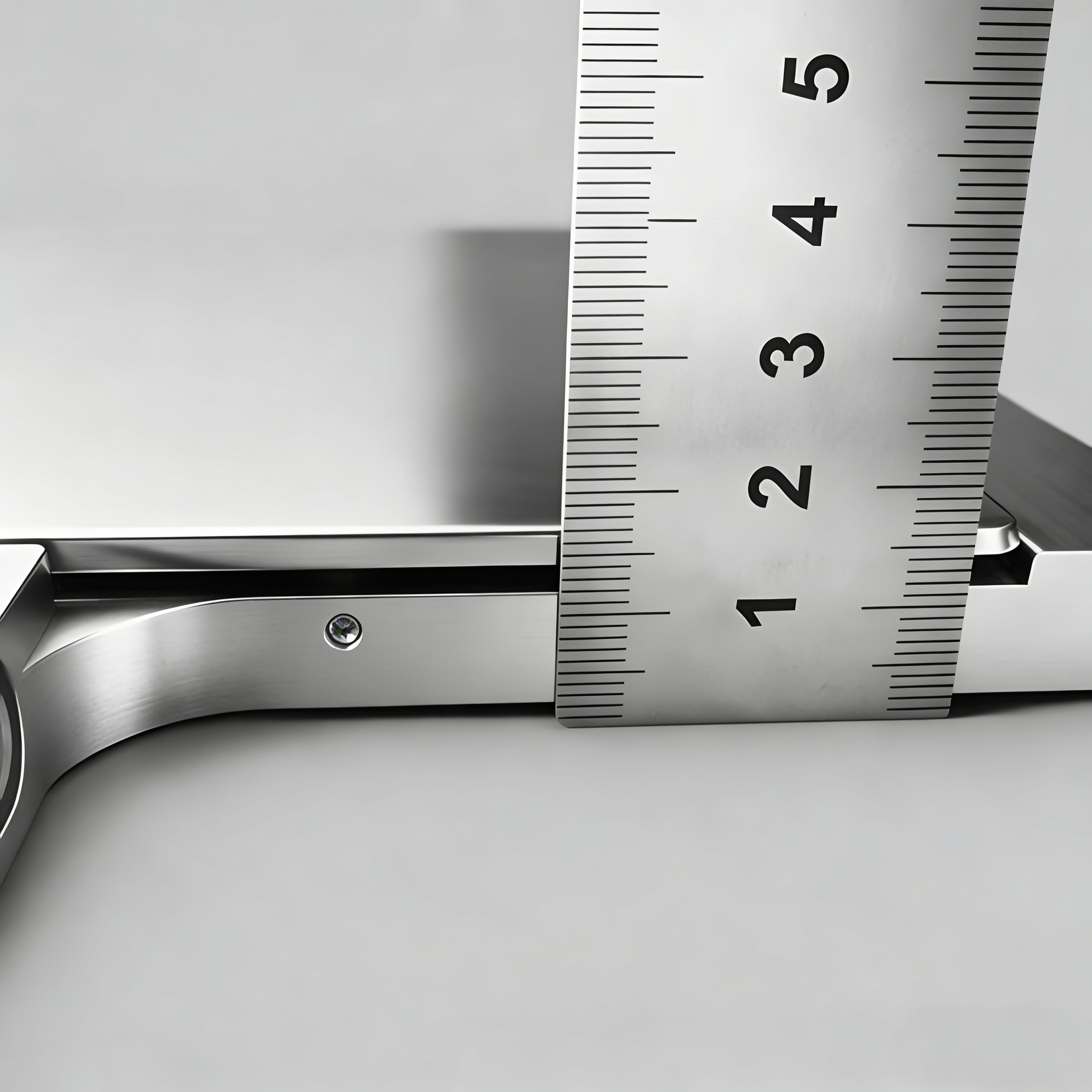

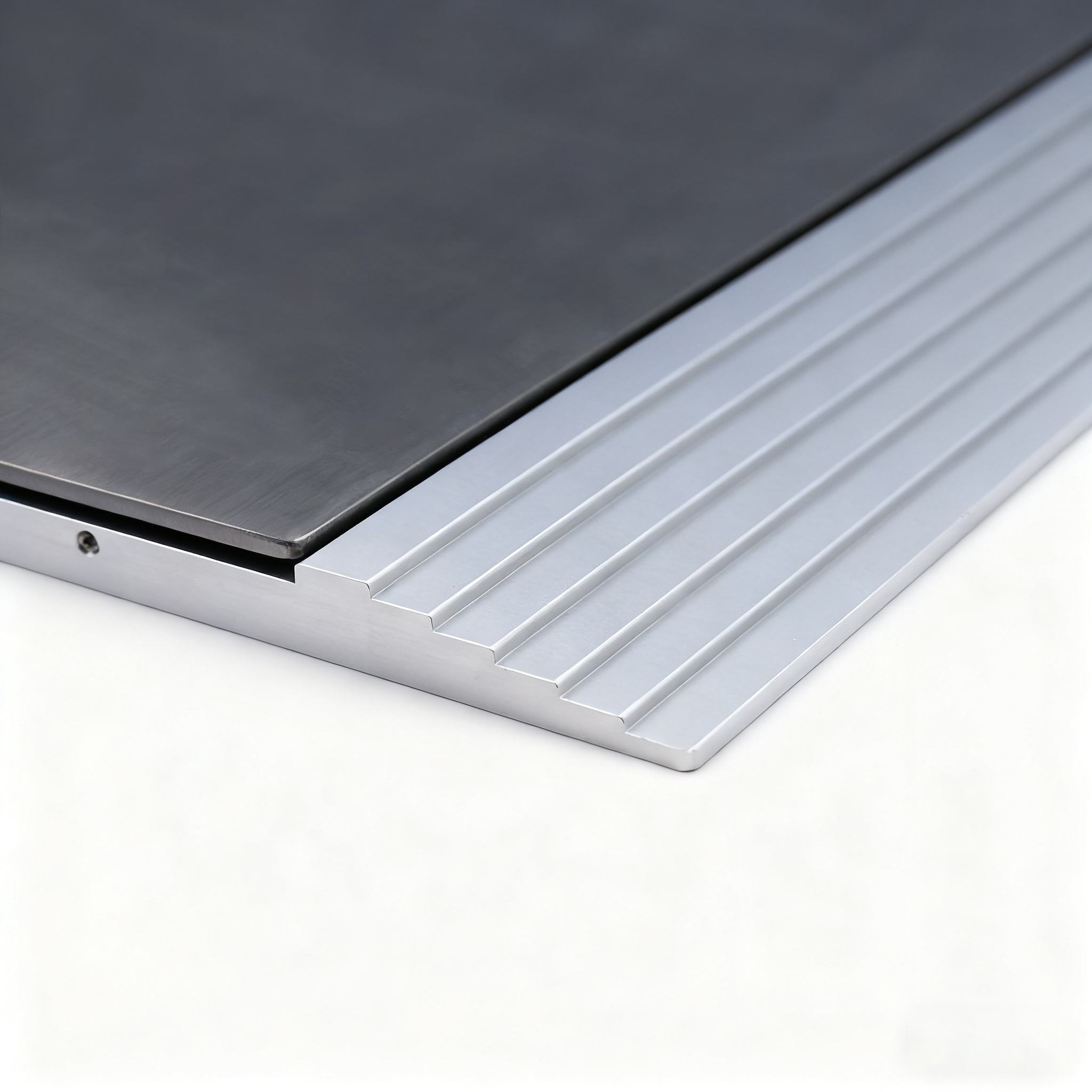

Our static wireless vehicle weighing pads adopt an ultra-thin portable design with a thickness of merely 15mm, and a spirit level can be installed as an optional accessory. Made of high-strength aluminum alloy and structural steel, the pads balance light weight and excellent load-bearing performance. Adopting German core measurement technology, the product maintains high weighing accuracy, stable operation and long-term reliability, fully satisfying precision weighing demands for high-end motor vehicles and aircraft.
Various digital display meters are optional to match different working needs, providing complete auxiliary data support for weight detection and chassis tuning of aircraft, recreational vehicles, racing cars, motorcycles and other premium transport equipment.
Portable Ultra-thin Static Wireless Vehicle Weighing Pads: A New Lightweight & High-precision Weighing Choice
Core Product Positioning
This ultra-thin portable static wireless vehicle weighing system is a high-precision metering instrument tailored for all mobile weighing occasions. Its two core advantages – ultra-slim pad body and wireless signal transmission – perfectly overcome the drawbacks of traditional weighing equipment including oversized footprint, messy wired layout and difficult transportation. It can be widely deployed to measure vehicle weight in highway law enforcement, logistics goods inspection, auto repair testing and many other industrial scenarios.
Applicable Scenarios
Traffic Law Enforcement: Mobile on-site overload detection for cargo trucks, eliminating the need to build fixed weighing stations
Logistics & Warehousing: Fast weight verification of loaded vehicles during cargo inbound and outbound procedures to improve overall handling efficiency
Automotive Repair & Tuning: Accurately measure axle load and gross vehicle weight to support chassis overhaul and suspension parameter adjustment
Engineering Construction: Regular weight checking of construction machinery vehicles at job sites to eliminate overload risks and guarantee construction safety
Technical Specifications
Single pad load range: 500kg – 30 tons (selectable or customized according to actual demand)
Adjustable division value: 1kg / 2kg / 5kg / 10kg
Outer overall dimension of single pad: 400*400*15mm (custom dimensions supported)
Effective weighing surface size of single pad: 350*300*15mm (custom dimensions supported)
Full static comprehensive weighing error: ±0.1% ~ ±0.5%
Operating environment: Temperature -20°C ~ 75°C, relative humidity ＜ 90%RH
Multiple types of display meters can be configured as required
Large-capacity built-in battery enables 20 hours of continuous operation, equipped with automatic power-off protection

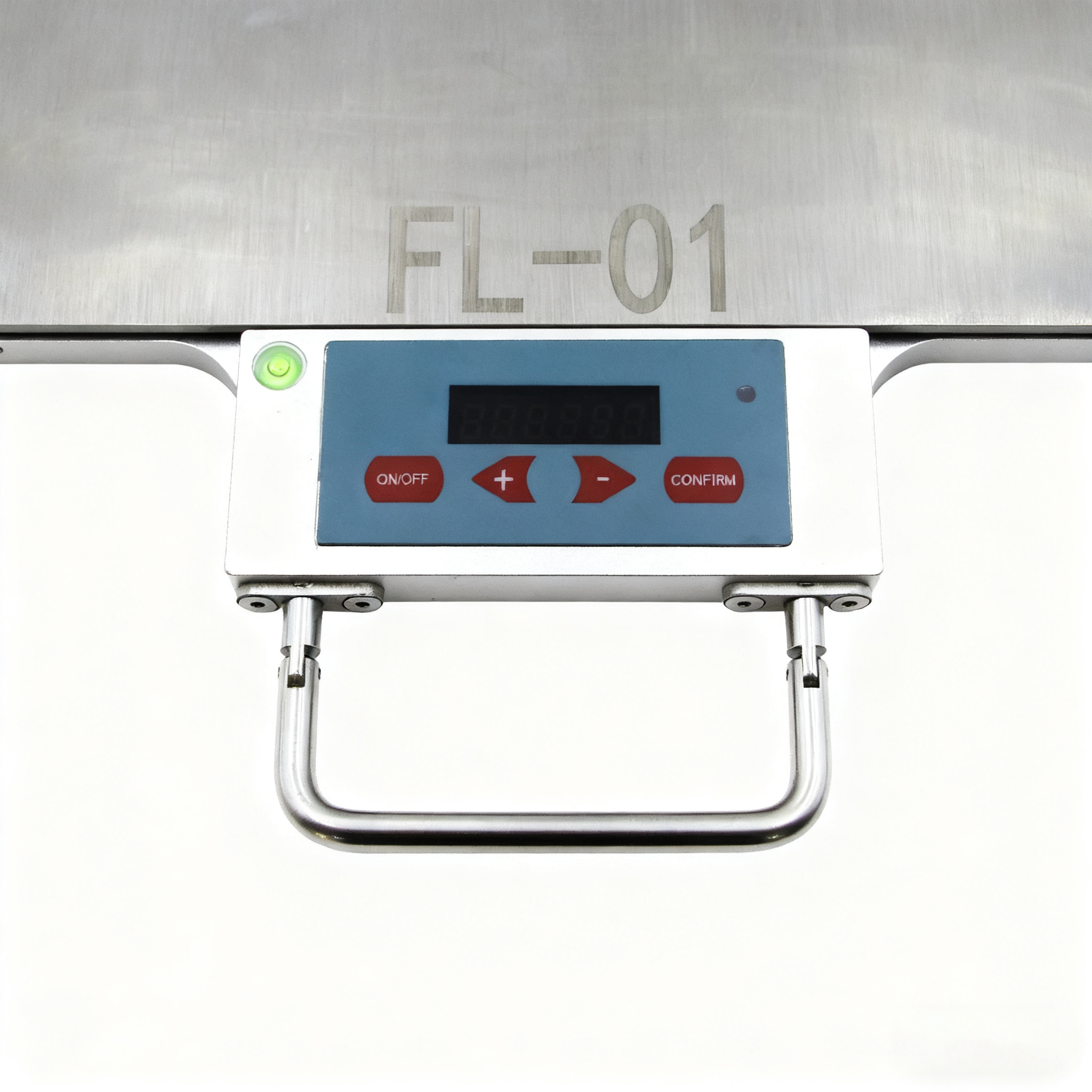

Digital Display Meter Technical Introduction
XJF-201: Capable of connecting up to 12 XJF-101 wireless weighing pads for static weighing; synchronously shows real-time weight, peak weight of each pad and total weight of the whole set. Custom upgrade version supports connection for maximum 32 weighing pads.
XJF-202: Supports simultaneous connection of up to 6 XJF-101 wireless weighing pads for static weight measurement.
XJF-203: Designed to connect one single XJF-101 wireless weighing pad for independent static weighing tasks.
Optional Customizable Extra Functions
Full product customization service to meet clients’ special testing standards
Mass data storage module, which can store up to 10,000 groups of test data records
Weight threshold alarm function: audible alarm sound and warning indicator light will activate once the measured weight hits the preset limit value
Built-in high-speed miniature printer, supporting print output of time, date, record serial number, ticket number, single axle weight, axle group weight, total vehicle weight and axle weight proportion data
