Wired Race Car Scale Solution
Stable and Accurate Corner Weight Measurement for Professional Motorsport Setup
The wired race car scale is a professional four-wheel weighing system designed for accurate vehicle corner weight measurement, chassis tuning, suspension setup and motorsport compliance inspection. It is widely used by racing teams, automotive testing centers, performance tuning workshops, motorsport event organizers and vehicle maintenance facilities that require stable, repeatable and high-precision weighing data.
In motorsport and high-performance vehicle tuning, even a small difference in wheel load distribution can influence steering response, braking balance, cornering stability and tire grip. The wired race car scale from Guangzhou Xingjiufeng Electronics Co., Ltd. provides reliable measurement of individual wheel weight, axle weight, total vehicle weight, left and right weight distribution, front and rear balance, cross weight and center of gravity distribution reference.
Solution Background
In professional racing and vehicle performance testing, corner weight measurement is a fundamental step before chassis adjustment. A vehicle may look balanced from the outside, but the real load carried by each tire can be very different. This hidden imbalance may cause unstable corner entry, inconsistent tire wear, poor braking response or reduced traction during acceleration.

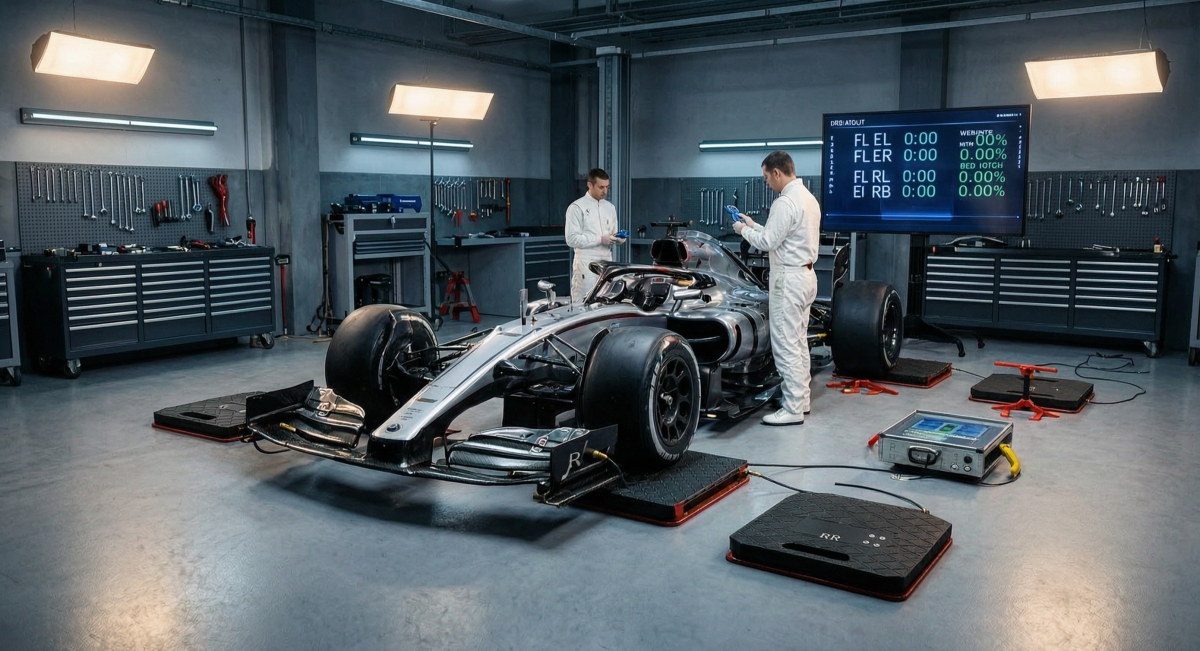

A wired race car scale solves this problem by placing four high-precision weighing platforms under the four wheels of the vehicle. Each platform collects load data from one wheel, and the wired display host calculates the overall weight distribution in real time. Compared with estimation or manual inspection, this method gives engineers objective data for setup decisions.
The wired design is especially suitable for fixed working environments such as racing workshops, vehicle testing laboratories, maintenance centers and scrutineering stations, where stable data transmission and long-term continuous use are important.
What Is a Wired Race Car Scale?
A wired race car scale, also called a wired corner weight scale, four-wheel weighing system, wheel load scale or racing balance meter, is a precision weighing device used to measure the weight applied to each wheel of a vehicle. The system normally includes four weighing pads and one wired display indicator or control host.
Each weighing pad is connected to the main display unit through signal cables. This wired connection provides stable communication between the scale pads and the host, making it suitable for repeated testing, workshop setup and professional vehicle inspection.
The system is not only used to check total vehicle weight. More importantly, it helps technicians understand the relationship between the four wheel loads, allowing them to adjust the chassis, suspension and ballast position more scientifically.
Key Problems This Solution Solves
Unclear Vehicle Weight Distribution
Many handling problems come from uneven weight distribution rather than engine, tire or aerodynamic issues. The wired race car scale displays the actual weight carried by each wheel, helping technicians quickly identify imbalance.
Inconsistent Cornering Performance
If diagonal weight or left-right load distribution is not properly controlled, a vehicle may behave differently in left and right turns. Measuring cross weight and corner weight allows the team to make targeted adjustments.
Unreliable Manual Setup Methods
Traditional setup methods based only on experience, visual height measurement or driver feedback may not provide enough accuracy. The wired scale system converts vehicle balance into measurable data.
Need for Stable Data Transmission
In some testing environments, users prefer a wired connection because it avoids communication instability and is suitable for long-duration measurement, repeated calibration and fixed workstation use.
Different Vehicle Types and Testing Requirements
Racing vehicles, modified cars, karting vehicles and performance cars may require different weighing capacities, platform dimensions and display functions. Xingjiufeng provides non-standard customization to meet these different application needs.
Our Wired Race Car Scale Solution
Guangzhou Xingjiufeng Electronics Co., Ltd. provides a customized wired racing scale solution for professional automotive weight detection and motorsport setup. The system is developed for customers who need reliable wired signal transmission, accurate wheel weight measurement and durable mechanical structure.
The weighing platform is made of high-strength aluminum alloy and high-quality steel materials. Multiple sealed high-precision sensors are embedded into the aluminum alloy weighing plate. This structure improves measurement stability, enhances anti-interference performance and protects the sensors from dust, moisture and other environmental factors.
The wired display host receives the signal from each weighing pad and calculates key vehicle setup data in real time. This helps racing engineers, mechanics and inspectors complete vehicle balance detection quickly and accurately.
System Composition
Four Weighing Platforms | Measure the load applied by each wheel. | Provides independent corner weight data for accurate vehicle balance analysis. |
Sealed Strain Gauge Sensors | Convert wheel load into electrical signals. | Ensures high precision, stable output and long-term durability. |
Wired Signal Cables | Connect each scale pad with the display host. | Provides stable data transmission for workshop and testing environments. |
Display Host | Receives, calculates and displays weighing data. | Shows single wheel weight, axle weight, total weight and cross weight in real time. |
Aluminum Alloy Weighing Plate | Supports vehicle wheel load during measurement. | Offers lightweight structure, high strength and convenient operation. |
Main Measurement Functions
The wired race car scale is designed to provide a complete view of vehicle weight distribution. Common professional corner weight systems display individual wheel values, total weight, axle weights, side-to-side balance and cross weight data, which are important references for race car setup and chassis adjustment.
Individual Wheel Weight | Weight measured at front left, front right, rear left and rear right wheels. | Used to identify corner load imbalance and support precise suspension adjustment. |
Front Axle Weight | Total weight carried by the two front wheels. | Helps evaluate steering response, braking load and front tire pressure strategy. |
Rear Axle Weight | Total weight carried by the two rear wheels. | Important for traction, acceleration stability and rear suspension setup. |
Total Vehicle Weight | Sum of all four wheel weights. | Supports competition weight compliance, vehicle modification evaluation and setup comparison. |
Cross Weight | Combined diagonal wheel weight percentage. | Used to analyze diagonal balance and improve left-right cornering consistency. |
Left / Right Balance | Comparison between the total weight on the left and right sides. | Helps detect lateral imbalance caused by driver position, fuel tank, battery or component layout. |
Front / Rear Balance | Comparison between front axle and rear axle weight percentage. | Supports braking balance, traction control and overall chassis setup. |
Center of Gravity Distribution Reference | Calculated reference data based on wheel load distribution. | Helps engineers understand the vehicle balance trend and optimize weight placement. |
Why Choose a Wired Racing Scale?
Stable Signal Transmission
The wired connection between the scale pads and the display host provides stable signal transmission. This is especially useful in workshops, laboratories and inspection stations where reliable communication and repeatable results are required.
Suitable for Fixed Testing Workstations
For automotive testing centers, racing garages and repair facilities, the wired race car scale can be installed as part of a regular vehicle inspection or setup process. It is suitable for repeated daily use in a controlled environment.
No Need to Manage Wireless Pairing
The wired system is simple to operate. Users only need to connect the weighing pads to the host, place the vehicle on the platforms and read the measurement results. This reduces the complexity of wireless pairing or signal management.
Reliable for Long Measurement Sessions
When technicians need to perform multiple rounds of suspension adjustment, ballast movement or setup comparison, the wired design supports continuous and stable data reading.
Cost-Effective Professional Solution
For customers who mainly use the equipment in fixed locations, the wired version provides a practical and reliable choice with excellent measurement capability and professional application value.
Product Structure and Material Advantages
High-Strength Aluminum Alloy Platform
The weighing platform uses aluminum alloy material to provide a strong but lightweight structure. This makes the scale easy to carry, position and store while maintaining sufficient strength for vehicle wheel load measurement.
Premium Steel Reinforcement
High-quality steel components enhance the structural rigidity and durability of the system, helping the product withstand frequent use in workshops and racing environments.
Embedded Sealed Sensor Design
Multiple sealed sensors are embedded into the weighing plate. This design improves weighing accuracy and reduces the influence of external vibration, dust and moisture on sensor performance.
Compact and Portable Body
The scale pads are compact and lightweight, allowing one person to move and arrange the system conveniently. This saves working space and improves testing efficiency.
Multiple Color Options
The product can be supplied in different colors according to customer requirements, helping race teams, workshops or distributors match their brand image or product line style.
Working Principle
1. Vehicle Preparation
Before measurement, the vehicle should be placed in a race-ready or test-ready condition. Tire pressure, fuel level, driver weight simulation, ballast and suspension settings should be prepared according to the testing purpose.
2. Scale Pad Positioning
Four weighing platforms are placed under the four wheels. The pads should be positioned on a flat and stable surface to help ensure consistent measurement.
3. Wired Connection
Each scale pad is connected to the display host through signal cables. The wired connection transfers sensor data from each wheel position to the host.
4. Load Signal Collection
The built-in high-precision strain gauge sensors detect the load applied to each platform and convert it into measurement signals.
5. Real-Time Data Calculation
The display host calculates individual wheel weight, front and rear axle weight, left and right balance, total vehicle weight, cross weight and distribution percentage.
6. Setup Adjustment
Technicians adjust suspension preload, ride height, ballast location or vehicle component layout according to the displayed data.
7. Repeat Verification
After adjustment, the vehicle is measured again to confirm whether the target balance has been achieved. This process helps create a repeatable and data-based setup workflow.
Application Scenarios
Formula and F1-Style Racing Cars
Formula cars are extremely sensitive to chassis balance and suspension setup. The wired race car scale helps engineers accurately analyze each wheel load and optimize the vehicle for high-speed cornering and braking stability.
GT and Touring Cars
GT and touring car teams can use the system to adjust front and rear balance, improve tire load distribution and maintain consistent handling during long race sessions.
Karting Teams
Karting vehicles require careful weight distribution because driver position and ballast placement have a direct influence on handling. The wired scale provides accurate data for kart setup and regulation checking.
Rally and Drift Vehicles
Rally and drift vehicles often experience strong load transfer and harsh operating conditions. Corner weight measurement helps technicians inspect chassis balance after suspension changes, impact repair or component replacement.
Modified Cars and Track-Day Vehicles
For modified cars, the system can be used after suspension upgrades, coilover installation, weight reduction, battery relocation or brake system modification to confirm the effect on vehicle balance.
Automotive Testing and Maintenance Centers
Vehicle testing institutions and maintenance centers can use the wired race car scale for wheel load inspection, vehicle balance analysis and safety-related weight distribution testing.
Motorsport Event Scrutineering
Event organizers can use the system for vehicle weight checking, ballast verification and technical compliance inspection before or after racing events.
Typical Use Cases
Pre-Race Setup | Confirm that the vehicle is balanced before entering the track. | Measures all four wheel loads and provides setup data for final adjustment. |
Suspension Tuning | Evaluate the effect of spring, damper, anti-roll bar or ride height changes. | Shows how each adjustment changes corner weight and cross weight. |
Ballast Placement | Meet minimum weight rules while maintaining ideal handling balance. | Helps determine the most suitable ballast position through repeated measurement. |
Vehicle Inspection | Find hidden chassis or suspension problems. | Detects abnormal weight distribution caused by deformation, tire pressure problems or component imbalance. |
Workshop Tuning Service | Provide professional corner balancing service for customers. | Improves service quality with clear, measurable and repeatable data. |
Competition Compliance | Check vehicle total weight and ballast arrangement. | Supports technical inspection and regulation verification for racing events. |
Technical Characteristics
Product Name | Wired Race Car Scale |
Also Known As | Wired Corner Weight Scale, Four-Wheel Weighing System, Wheel Load Scale, Racing Balance Meter |
Main Function | Measurement of individual wheel weight, axle weight, total weight, cross weight and weight distribution |
System Structure | Four high-precision weighing pads with wired display host |
Sensor Type | High-precision strain gauge sensor |
Sensor Protection | Sealed sensor structure for dust and moisture resistance |
Platform Material | High-strength aluminum alloy and premium steel |
Communication Method | Wired signal transmission |
Product Features | Accurate, durable, lightweight, compact, portable and easy to operate |
Customization | Customized dimensions, capacity, color, structure, display functions and special production design |
Applicable Vehicles | Formula cars, GT cars, touring cars, karting vehicles, rally cars, drift cars, modified cars and racing vehicles |
Applicable Users | Racing teams, automotive testing centers, repair workshops, tuning shops and motorsport organizers |
Customization Service
As a non-standard customized product, the wired race car scale can be designed and manufactured according to specific customer requirements. Xingjiufeng fully understands that different vehicles and testing environments may require different product configurations.
Custom Size
The weighing platform dimensions can be customized to match different tire sizes, vehicle types and workshop layouts.
Custom Capacity
The weighing capacity can be adjusted according to the target vehicle type, from lightweight karting and formula vehicles to heavier modified cars and touring cars.
Custom Display Functions
The display host can be configured to show specific data such as single wheel weight, axle weight, total weight, cross weight, percentage values or other required parameters.
Custom Appearance and Color
Different product colors and surface designs can be provided according to customer branding, distributor requirements or team style.
Custom Mechanical Structure
Special structural designs can be developed for low-chassis vehicles, fixed inspection workstations, mobile cases or other application requirements.
Advantages for Different Customers
Racing Teams | Improve chassis setup accuracy, reduce testing time and create repeatable race setup data. |
Performance Workshops | Offer professional corner balancing and suspension tuning services to customers. |
Automotive Maintenance Centers | Detect abnormal vehicle load distribution and support safety-related inspection. |
Testing Institutions | Obtain accurate vehicle weight distribution data for research, testing and evaluation. |
Motorsport Organizers | Support race vehicle weight inspection, ballast checking and compliance verification. |
Distributors and OEM Customers | Receive customized product design, appearance options and non-standard production support. |
Why Choose Guangzhou Xingjiufeng Electronics Co., Ltd.
Professional Manufacturer Since 2011
Guangzhou Xingjiufeng Electronics Co., Ltd. was established in 2011 and has been engaged in non-standard customized production for many years. The company focuses on industrial control fields such as battery pressure detection, electronic flatness detection, racing balance meters, RV balance detection and mining weighing detection.
Experience in Pressure Detection and Weighing Applications
With long-term experience in the pressure detection industry, Xingjiufeng understands the importance of sensor accuracy, structural reliability and stable data output. This experience supports the development of professional racing weighing systems.
Strong Technical Team
The company has professionals in instrument software and hardware development, sensor design and manufacturing, automation control and customized system integration. This allows Xingjiufeng to provide both standard product support and non-standard customized solutions.
Advanced Manufacturing and Testing Capability
Xingjiufeng is equipped with CNC equipment, pressure testing machines, high and low temperature laboratories and other production and testing facilities. These capabilities help ensure stable product quality and reliable performance.
Successful Industry Applications
The company has successful project experience in racing tracks, RV associations, aircraft maintenance, new energy lithium battery applications and other industries, demonstrating its ability to serve different professional application scenarios.
Flexible Non-Standard Customization
From special product dimensions to unique production design, Xingjiufeng can develop customized wired race car scale solutions according to customer requirements, helping users match the equipment with their actual testing workflow.
Recommended Solution Configuration
Standard Wired Four-Pad Scale System | Racing workshops, tuning shops and maintenance centers | Stable, practical and easy to operate for daily use. |
Customized Low-Profile Scale Pads | Formula cars, F1-style cars and low-chassis vehicles | Easier vehicle positioning and better fit for racing applications. |
High-Capacity Wired Scale System | GT cars, touring cars, modified vehicles and testing centers | Suitable for heavier vehicles and professional inspection needs. |
Custom Display Data Version | Race teams and engineering departments | Displays selected data according to team setup workflow. |
OEM / Brand Customization Version | Distributors, equipment suppliers and private-label customers | Supports customized appearance, color and structural design. |
Implementation Process
Step 1: Requirement Communication
Xingjiufeng communicates with the customer to understand the target vehicle type, application environment, required capacity, platform size, display data and customization requirements.
Step 2: Solution Design
The technical team designs the wired race car scale configuration based on the customer’s actual measurement workflow and application scenario.
Step 3: Production and Assembly
The weighing platforms, sensor structure, display host and wired connection system are produced and assembled using suitable materials and manufacturing processes.
Step 4: Testing and Verification
The system is tested to verify weighing performance, signal stability, structural reliability and overall function before delivery.
Step 5: Delivery and Application Support
After delivery, the product can be used for vehicle corner weight measurement, chassis setup, suspension tuning and motorsport inspection applications.
Solution Value Summary
The Xingjiufeng wired race car scale solution provides professional support for accurate wheel load measurement and vehicle balance optimization. With high-strength aluminum alloy construction, sealed high-precision sensors, stable wired transmission and flexible customization capability, the system is suitable for professional motorsport setup, automotive performance testing, vehicle maintenance and race compliance inspection.
For racing teams, it helps improve chassis tuning accuracy and handling consistency. For workshops, it adds value to professional tuning and inspection services. For event organizers, it supports reliable vehicle weight checking. For customized equipment customers, Xingjiufeng provides strong engineering capability and flexible production support.
Contact Us for a Customized Wired Race Car Scale Solution
If you need a reliable wired race car scale for corner weight measurement, chassis setup, suspension tuning or vehicle weight inspection, Guangzhou Xingjiufeng Electronics Co., Ltd. can provide a customized solution according to your vehicle type, application environment and technical requirements.
